Foundation Bolt

Foundation Bolt

Foundation Bolt

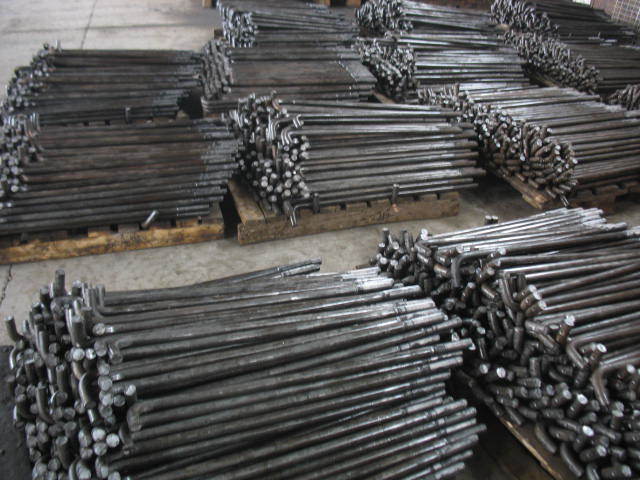

Vikalp Fasteners Pvt Ltd, as a manufacturer provides foundation bolt in materials, like alloy steel, duplex and super duplex, stainless steel, carbon steel, non-ferrous and exotic alloys. The design of this foundation bolt is L shape, wherein the straight rod is bent to 90° to form L. With a design that provides anchorage, the foundation bolt is embedded in concrete. Due to the L shape design, the foundation bolt remains in the concrete even if force is applied. These bolts are developed in accuracy design, have high tensile strength and are durable and resistant to corrosion.

MATERIALS

EXOTIC ALLOYS

HASTELLOY C22/C276

INCONEL 600/625/718/800/925

MONEL400/K500

NITRONIC 50/60

NITRONIC 50/60

660A,B,D

DUPLEX & SUPER DUPLEX

32760(ZERON 100) SA, FG, FLT

31803 (1.4462)

32750, 31254 (254SMO)

32550 (FERRALIUM)

DUREHETE 950, 1055, 21CrMoV5.7

X22CrMoV12.1 (1.4923)

JETHETE X19

X19CrMoVNbN11.1 (1.4913)

ESSHETE 1250

B16

NIMONIC 80A/90

1.7729

HEAT RESISTING GRADES

304

347

310

410

316

420

317

431

321

904L (URANUS B6)

STAINLESS STEELS

17/4PH (630)

FV520B

PRECIPITATION HARDENED
STAINLESS STEELS

MILD STEEL

817M40 (EN 24)

080M40 (EN8)

823M40 (EN 26)

605M36 (EN 16)

AISI 4140

709M40 (EN 19)

AISI 4340

CARBON & ALLOY STEELS

HIDURON

PHOSPHOR BRONZE

MARINEL

MANGANESE BRONZE

CUPRO NICKEL 70/30 & 90/10

ALUMINIUM BRONZE

SILICON ALUMINIUM BRONZE

COPPER

NON-FERROUS

ALUMINIUM

C63000

BOLTING GRADES

ASTM 193

B5, B6,B7, B7M

B16

B8M CLASS 1 & 2

B8 CLASS 1 & 2

B8C, B8T

ASTM 320

L7, L7A, L7B, L7C, L43

B8M CLASS 1 & 2

B8 CLASS 1 & 2

B8F, B8T

ASTM 325

TYPE-1, 2, 3

ASTM 490

TYPE-1, 2, 3

ASTM 307

GR-A, B

ISO:898 / IS-1367

GR-4.6, 5.6, 8.8, 10.9, 12. 9

NUT GRADES

ASTM 194

GRADE

7

1

7M

2

8

2H

8M

2HM

4

ASTM 563

GRADE 0, A, B, C, C3, D, DH, DH3

ISO:898 / IS-1367

GRADE 4, 5, 6, 8, 10, 12

THREAD FORMS All fasteners can be supplied with the following thread forms:

METRIC

METRIC FINE

METRIC COURSE

UNC

UNF

UN

UNF

UN8

WHIT WORTH

BSW

BSF

ANCILLARY PROCESSES

HEAT TREATMENT

QUENCHING AND TEMPERING

THRU HARDENING

NORMALISING

SOLUTION ANNEALLING

NITRIDING

PRECIPITATION HARDENING

CASE HARDENING


COATINGS

ZINC

XYLAR / XYLAN

ZINC NICKEL

MOLYKOTE

HOT DIP GALV

SHERARDIZING

PTFE / XYLAN

CADMIUM

PHOSPHATE
